LMS Plugin - Connector Updates

LMS Plugin - Connector Updates

Software Updates



LMS Plugin


Updating the Synergy Plugin for LMS is done using a built-in updater app

To find the location of this is app, open your LMS Management Console

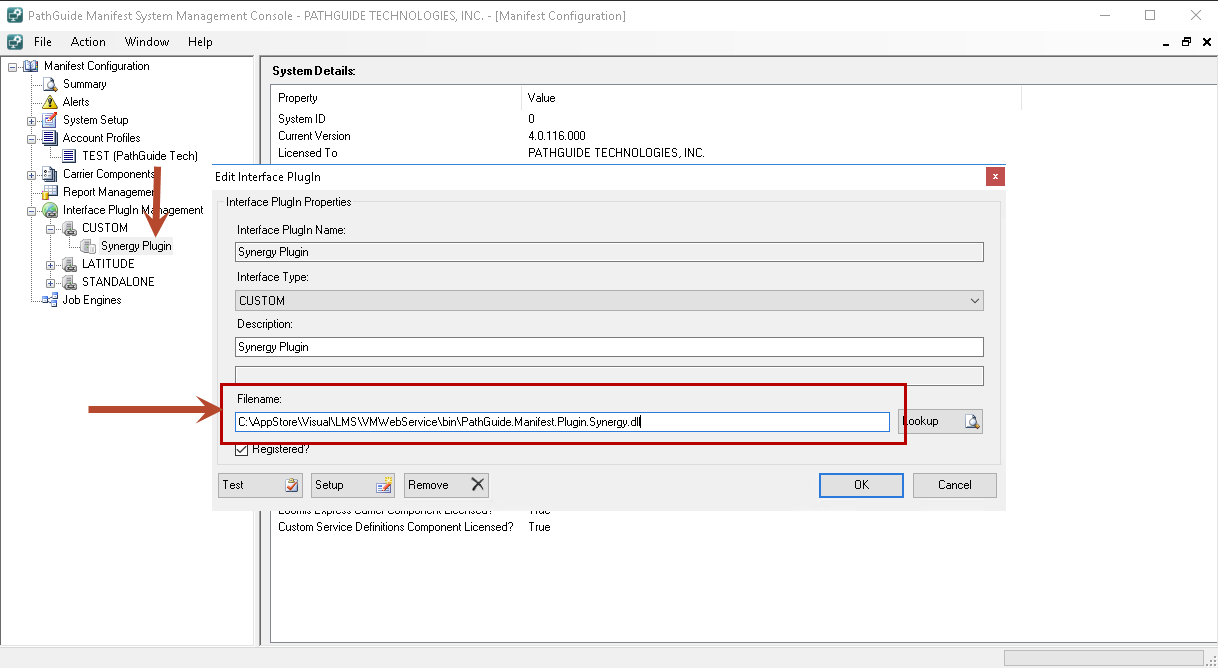

Then look for the file path highlighted below



Then look for the file path highlighted below



Within this directory you will find the following EXE

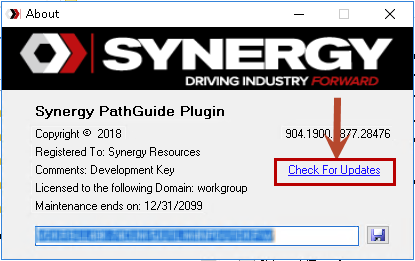

Run this EXE and click on the Check for Update link.
Note, this will show a screen that highlights the feature and defects included in the update. The user must click Get Update on this screen to begin the update process.




Visual Client

After the Synergy LMS Plugin has been updated, you will also need to update your Visual client machines
to support your Shipment Entry macro and toolbar icon for consolidated shipments.

To find the location of this path, open Toolbar Maintenance and find the highlighted selection below


Copy the following files from Synergy Plug in directory to the same path found for your Shipment Entry toolbar icon.
      DevExpress*.dll (all file beginning with this)
      LogicNP.CryptoLicensing.dll
      ShipmentConsolidationApp.exe
      ShipperIdTransfer.exe
      Synergy.PathGuidePlugin.License.dll
      SynergyPathGuidePluginLic
