Easy System Connector - Installation

Easy System Connector - Installation

Prerequisites

Supported Visual versions are 7.0 – 11.x

Database Platform: SQL Server & Oracle

Microsoft .Net Framework 4.8

Installation

Use the this link to download the setup file. Once downloaded follow these steps to install.

QA Testing Download (For internal Synergy use only)

  1. Run EasySystemConnectorSetup.exe
  2. Set the path to

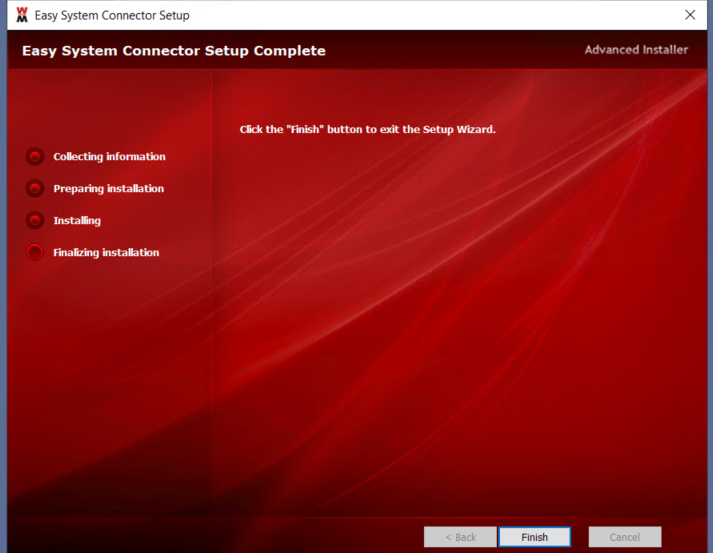

  3. Press 'Finish', you are now ready to run the program.

SQL Connection

If your client is having issues with connection to an sql server, it may be due to the clients sql server permissions.  In the app.config file please find the following:
  1.   <appSettings>
  2.     <add "ConnectionStringAppend" key="Trusted_Connection=False;Encrypt=False;"/>
  3.   </appSettings>
The above is a default setting for either sql server or oracle.

When connecting to SQL Server, the Trusted_Connection (or Integrated Security) setting in the connection string determines whether Windows Authentication is used instead of SQL Server username/password authentication.

When connecting to SQL Server while ignoring (not validating) the server's SSL/TLS certificate, you can set the following TrustServerCertificate=true  (This is often used in development or testing environments with self-signed certificates or without a proper CA chain.
  • Trusted_Connection=True or Integrated Security=True means:
    • The connection uses the Windows credentials of the process running the application.
    • Any User ID and Password in the connection string are ignored.
  • This is useful in Active Directory or domain environments where you want to avoid storing credentials in code.
  • If set to False, you must provide User ID and Password.

    3. Equivalent Keywords

    • Trusted_Connection=True
    • Integrated Security=True
    • Integrated Security=SSPI (Windows only)

    All three mean the same thing in .NET for SQL Server.

    Security Notes

    • Windows Authentication is generally more secure because credentials are not stored in the connection string.
    • If using SQL Authentication, never hardcode passwords — use secure storage like Azure Key Vault, Windows Credential Manager, or environment variables.
