Macro Server - Info

What Is Macro Server

1. Central Management of Macros
2. Macros are stored in the database
3. Deployed as a Web Service under IIS
4. Visual Access Controls are Applied to Macros
5. Provides Extensions to VBScript Environment
1. SQL Queries
2. Common VBScript Function Library

6. Has a Basic Script Editor Included


Server Side – Macro Server

1. Macro Server
2. What it does:
3. Central Deployment
4. Allows test in test database

Client Side – Loader

1. Loader
1. What it does
1. Bridges Visual VB Script to dotNet
2. COM interop for dotNet
2. Synergy No Touch deployment (VE Scripts)
1. Deploy using Domain Policy with Active Directory
2. All other dotNet components are pulled to the client from the macro server by Loader

Client Side – Macro Net

1. Macro Net
1. What it does
1. Interaction with the Visual database
2. Retrieve scripts from the Visual database
3. Execute SQL queries using the user’s credentials
1. No passwords in scripts

Client Side – “Macro Stub” Script

Option Explicit
dim lib, scriptName, serverName

'_______****User Entry Required****________

'Define Script and Server

scriptName = "DistOrd"  ' Distributed Order < SET THE SCRIPT NAME HERE
serverName = "SRISalesDemo“ < SET THE WEB SERVER HOSTNAME HERE
'_____________________________________

set lib = createobject("VTG.Loader.Managed")  < LOADER (CLIENT COMPONENT)
lib.ServerUrl = "http://"  & serverName & "/SRIMacroServer" < WEB SERVICE
dim util
lib.ActivateObject "util","VTG.Macro.Net.dll","VTG.Macro.Net.Lib“ < MACRO NET PREP
set util = lib.GetObject ("util") < MACRO NET INSTANTIATED IN VBSCRIPT ENVIRON
util.ServerURL = lib.ServerURL < USE THE SAME WEB SERVER
executeglobal util.Script(scriptName) < THE MAGIC HAPPENS HERE

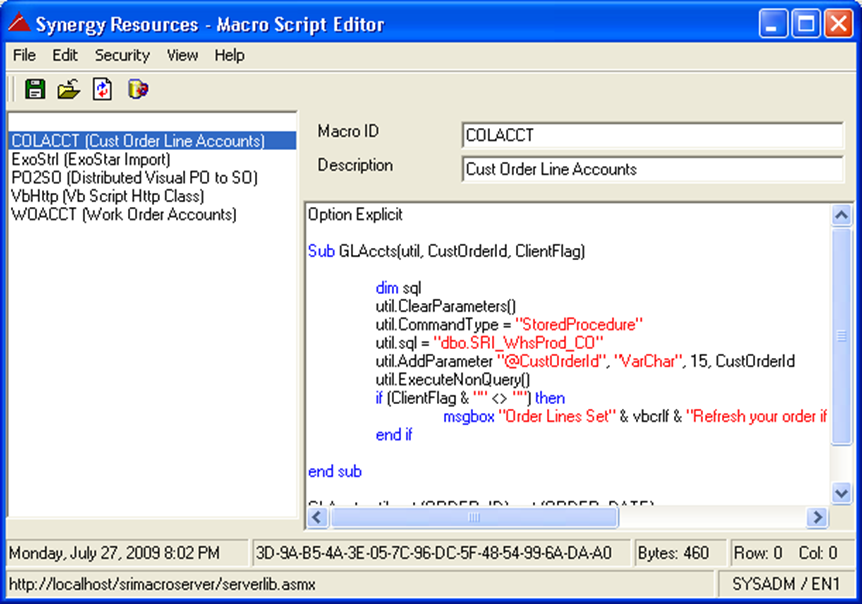

Macro Editor

Storing Script in the database

      Use the tool - REMOVE ALL TEXT TO DELETE

VB Script – SQL Queries

1. Three SQL Query Functions
1. ExecuteScalar
1. Use for Select when expecting a single value
2. Execute Query
1. Use for SELECT when Expecting an Array of Data
3. ExecuteNonQuery
1. Use for Stored Procedures, INSERT, UPDATE, and DELETE
2. These are Methods on the UTIL Object
1. They Connect with the Users DB Credentials


ExecuteScalar

Returns one piece of data

'ExecuteScalar Test

util.CommandType = "Text"

util.Sql = "Select COUNT(*) FROM PART WHERE DESCRIPTION IS NULL"

MSGBOX "Scalar test " & util.ExecuteScalar

ExecuteQuery

Returns “array” data

'ExecuteQuery Test

util.Sql = "Select ID, DESCRIPTION, UNIT_PRICE FROM PART WHERE ID LIKE ‘M%'"

objArr = util.ExecuteQuery

msgbox ubound(objArr ,1) & " Rows, " & ubound(objArr ,2) & " Columns"

'Loop the Array

For row = 0 to ubound(objArr ,1)

  IF MSGBOX ("PartID: " & objArr( row,0 ) & " Description: " & objArr(row,1) & _  " Unit Price:<" & objArr(row,2) & ">",VbOkCancel) = VbCancel THEN          EXIT FOR

  END IF

ExecuteNonQuery

 Returns Status

​'ExecuteNonQuery Test

util.Sql = “UPDATE PART SET FABRICATED = ‘Y’ WHERE ID LIKE ‘MXZ%'"

status = util.ExecuteNonQuery

Msgbox “Udated “ & status & “ Rows.”
